Mango24R2 Standard Package1[ S3C2450 EVB ]
ÆǸŰ¡°Ý : 155,000¿ø (VAT º°µµ)
¿ø»êÁö :
¼ö·®
: ¼ö·®Áõ°¡
¼ö·®°¨¼Ò
SNS ¾Ë¸®±â :

»óÇ°»ó¼¼





Price : 155,000¿ø (VATº°µµ)

help@crz-tech.com  ( 031-701-5057)






Mango24R2 Feature


»ï¼º 533MHz °í¼º´É ARM9EJ-S Application Processor žÀç °³¹ß º¸µå

Samsung S3C2450 (ARM926EJ-S Application Processor) Development Board

Firmware, RTOS (eCoS¿Ü ±âŸ), Widows CE 6.0, Linux Áö¿ø

USB Host, USB Device, 10/100 Mbps Ethernet, microSD socket, Audio Codec ±âº» Áö¿ø

WIFI/Bluetooth, °¢Á¾ TFT LCD, °¢Á¾ Sensor (°¡¼Óµµ, ÀÚÀÌ·Î, ±â¾Ð, ¸®¸ðÄÜ µî), Camera ÀÎÅÍÆäÀ̽º È®Àå Áö¿ø



  • CPU : ARM926EJ Samsung S3C2450 533Mhz

  • Memory : Mobile DDR2 64Mbytes , SLC NAND Flash 256Mbytes

  • OS : Wince 6.0, Linux , Firmware Áö¿ø

  • ºÎÆà ¸ðµå : SD/MMC or NAND ¸ðµå Áö¿ø

  • Display :  TFT LCD Controller ³»Àå

  • Audio : Wolfson WM8960 with 1W Stereo Speaker Amplifier

  • USB Host 1.1 : 1 Port (Full Speed)

  • USB Device 2.0 : 1 Port

  • SD : SD/MMC Port0 (WiFi/BT) SD/MMC Port1 (SD Boot)

  • WiFi/BT Ä¿³ØÅÍ : SDIO 0 Channel 802.11B,G,N

  • Camera : 1Port 1.3M Pixel Camera

  • UART : UART0 , UART1 (Debug) , UART2 (Expansion) , UART3 (GPS)

  • Sensor Interface : I2C 0 Port (3-Axis, Gyro, Light, Remocon etc)

  • Ethernet : SMSC LAN9220 10/100Mbps Ethernet Constroller

  • Power : DC-JACK 5V, 2A

  • Button : Reset: 1, Button: 2

  • Boot Switch : 1

  • LED indicator : 2

  • Connectors(80X2) : EBI, UART, I2C GPIO etc

  • Dimensions : CPU 75 x 55 mm Base 145 x 95 mm





Documents

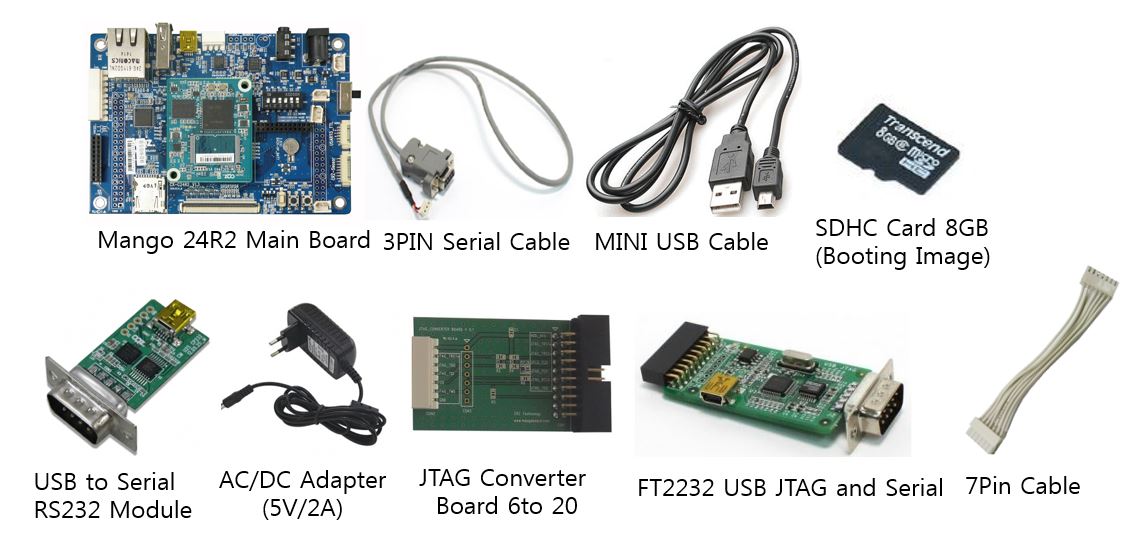

Shipping Materials


  • Mango24R2 Main Board : 1ea

  • 3pin Serial Cable : 1ea

  • Micro SD Card (Linux Boot Image Æ÷ÇÔ) : 1ea

  • Mini USB Cable : 2ea

  • 5V DC Adapter : 1ea

  • JTAG Converter Board 6 to 20 : 1ea

  • FT2232 USB JTAG and Serial : 1ea

  • USB to RS232 Module : 1ea

  • 7Pin cable

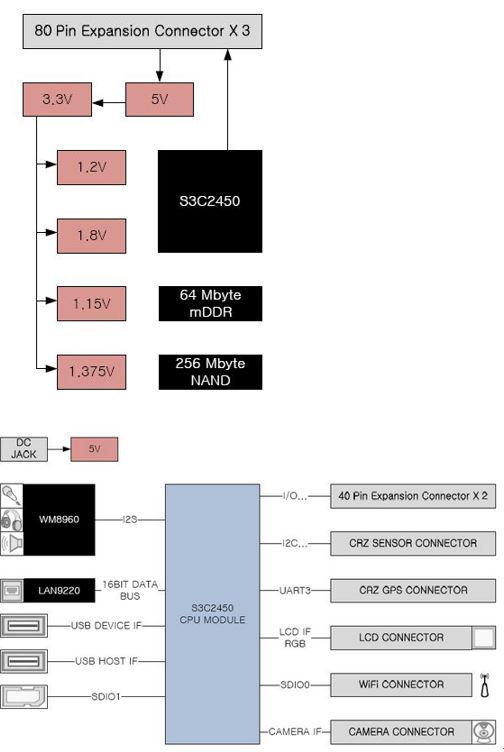

Block Diagram


¹èÄ¡µµ
